GEMS捷邁3250壓力變送器傳感器 有GEMS捷邁3250T 3250G兩種型號， 3250T是 Enhanced EMC 有EMC電磁兼容
3250G有 High Insulation 高絕緣 這兩個系列輸出信號 4-20mA 0-10V 0.5-4.5V 可選，

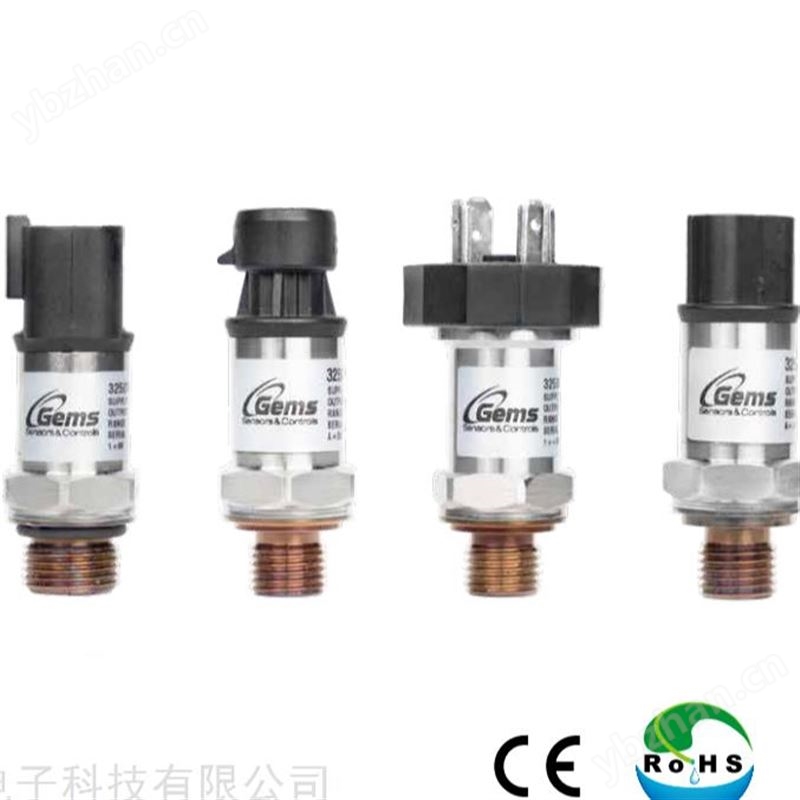

GEMS捷邁3250壓力變送器傳感器
有GEMS捷邁3250T 3250G兩種型號， 3250T是 Enhanced EMC 有EMC電磁兼容
3250G有 High Insulation 高絕緣 這兩個系列 選型分為7步，
選型表，3250系列選型表，加粗字體是選型代碼
1選擇系列
3250T Enhanced EMC
3250G有 High Insulation
2選擇輸出信號
B - 4-20mA S - 0-10V
T - 0.5-4.5V Ratiometric3選擇壓力量程
0050S - 0-50bar
0160S - 0-160bar
0250S - 0-250bar
0400S - 0-400bar
0500S - 0-500bar
0600S - 0-600bar
4螺紋接口
01 - G1/4A BS5380 外螺紋
05 - G1/4A DIN 3852:2 外螺紋
5P - G1/4A JIS B2351 外螺紋
2L - G3/8A JIS B2351 外螺紋
5選擇電電氣連接
E - M12*1P
8 - Deutsch DT04-4PG - DIN43650A
S - Sumitomo
9 - Packard Metripack
6阻尼器選擇
R - 阻尼器
0 - 無阻尼器
7備用代碼
00
3250系列壓力傳感器是具有高性價比、高性能、高可靠性和高穩定性的傳感器, 其多種電氣輸出類型、壓力接口和電氣接口可滿足大多數OEM用戶的產品配置要求,同時具有出色的耐壓力沖擊特性，能夠在壓力變化的環境中穩定工作,此外產品具備的EMC性能，可有效抵抗電磁干擾保障測量的準確性和可靠性。
GEMS捷邁3250 系列緊湊型重載壓力傳感器壓力范圍 0 ～ 50bar 至 0 ～ 600bar ▲
電磁兼容性 ▲
高耐壓爆破壓性能 ▲
多種電氣接口、壓力接口和輸出類型可選 ▲
符合 CE ▲
產品規格
壓力范圍 0 - 50bar, 0 - 600bar
壓力類型 表壓
耐壓 2×FS
爆破壓 5×FS
供電電壓
9 - 30VDC ( 電流輸出 ) * 大回路電阻 800Ω
12 - 30VDC ( 電壓輸出 )
5VDC±10% ( 比例電壓輸出 )
電流輸出 4 - 20mA
電壓輸出
0 - 10V
0.5 - 4.5V 比例電壓輸出 , 供電電壓 10% - 90%
精度（非線性、遲滯、重復性 ) ±0.25%FS
零點誤差 ±0.5%FS
滿程誤差 ±0.5%FS
工作溫度范圍 -40° C ～ 125° C
補償溫度范圍 -20° C ～ 85° C
設計疲勞壽命 >10,000,000 次
壓力接口類型 請參看“壓力接口”
電氣連接類型 M12*1P、Deutsch DT04-4P、Sumitomo、Large DIN、Packard MetriPack
電源反接保護 有
絕緣等級 500VDC 20MΩ * 僅適用于 3250G
沖擊、振動 50g EN 60068-2-27, 20g (10...2000 Hz) DIN EN 60068-2-6
防護等級 IP67、IP65 (DIN43650A)
材料
接液部件 : 17-4 PH SS
外殼 : 304 SS
認證 CE
GEMS捷邁3250壓力變送器傳感器 4-20毫安信號 選型
3250TB0050S01ER00,3250TB0050S01E000,3250TB0050S018R00,3250TB0050S018000,3250TB0050S01GR00,
3250TB0050S01G000,3250TB0050S01SR00,3250TB0050S01S000,3250TB0050S019R00,3250TB0050S019000
3250TB0050S051ER00,3250TB0050S05E000,3250TB0050S058R00,3250TB0050S058000,3250TB0050S05GR00,
3250TB0050S05G000,3250TB0050S05SR00,3250TB0050S05S000,3250TB0050S059R00,3250TB0050S059000
3250TB0050S5P1ER00,3250TB0050S5PE000,3250TB0050S5P8R00,3250TB0050S5P8000,3250TB0050S5PGR00,
3250TB0050S5PG000,3250TB0050S5PSR00,3250TB0050S5PS000,3250TB0050S5P9R00,3250TB0050S5P9000,
3250TB0050S2L1ER00,3250TB0050S2LE000,3250TB0050S2L8R00,3250TB0050S2L8000,3250TB0050S2LGR00,
3250TB0050S2LG000,3250TB0050S2LSR00,3250TB0050S2LS000,3250TB0050S2L9R00,3250TB0050S2L9000,
3250TB0160S01ER00,3250TB0160S01E000,3250TB0160S018R00,3250TB0160S018000,3250TB0160S01GR00,
3250TB0160S01G000,3250TB0160S01SR00,3250TB0160S01S000,3250TB0160S019R00,3250TB0160S019000
3250TB0160S051ER00,3250TB0160S05E000,3250TB0160S058R00,3250TB0160S058000,3250TB0160S05GR00,
3250TB0160S05G000,3250TB0160S05SR00,3250TB0160S05S000,3250TB0160S059R00,3250TB0160S059000
3250TB0160S5P1ER00,3250TB0160S5PE000,3250TB0160S5P8R00,3250TB0160S5P8000,3250TB0160S5PGR00,
3250TB0160S5PG000,3250TB0160S5PSR00,3250TB0160S5PS000,3250TB0160S5P9R00,3250TB0160S5P9000,
3250TB0160S2L1ER00,3250TB0160S2LE000,3250TB0160S2L8R00,3250TB0160S2L8000,3250TB0160S2LGR00,
3250TB0160S2LG000,3250TB0160S2LSR00,3250TB0160S2LS000,3250TB0160S2L9R00,3250TB0160S2L9000,
3250TB0250S01ER00,3250TB0250S01E000,3250TB0250S018R00,3250TB0250S018000,3250TB0250S01GR00,
3250TB0250S01G000,3250TB0250S01SR00,3250TB0250S01S000,3250TB0250S019R00,3250TB0250S019000
3250TB0250S051ER00,3250TB0250S05E000,3250TB0250S058R00,3250TB0250S058000,3250TB0250S05GR00,
3250TB0250S05G000,3250TB0250S05SR00,3250TB0250S05S000,3250TB0250S059R00,3250TB0250S059000
3250TB0250S5P1ER00,3250TB0250S5PE000,3250TB0250S5P8R00,3250TB0250S5P8000,3250TB0250S5PGR00,
3250TB0250S5PG000,3250TB0250S5PSR00,3250TB0250S5PS000,3250TB0250S5P9R00,3250TB0250S5P9000,
3250TB0250S2L1ER00,3250TB0250S2LE000,3250TB0250S2L8R00,3250TB0250S2L8000,3250TB0250S2LGR00,
3250TB0250S2LG000,3250TB0250S2LSR00,3250TB0250S2LS000,3250TB0250S2L9R00,3250TB0250S2L9000,
3250TB0400S01ER00,3250TB0400S01E000,3250TB0400S018R00,3250TB0400S018000,3250TB0400S01GR00,
3250TB0400S01G000,3250TB0400S01SR00,3250TB0400S01S000,3250TB0400S019R00,3250TB0400S019000
3250TB0400S051ER00,3250TB0400S05E000,3250TB0400S058R00,3250TB0400S058000,3250TB0400S05GR00,
3250TB0400S05G000,3250TB0400S05SR00,3250TB0400S05S000,3250TB0400S059R00,3250TB0400S059000
3250TB0400S5P1ER00,3250TB0400S5PE000,3250TB0400S5P8R00,3250TB0400S5P8000,3250TB0400S5PGR00,
3250TB0400S5PG000,3250TB0400S5PSR00,3250TB0400S5PS000,3250TB0400S5P9R00,3250TB0400S5P9000,
3250TB0400S2L1ER00,3250TB0400S2LE000,3250TB0400S2L8R00,3250TB0400S2L8000,3250TB0400S2LGR00,
3250TB0400S2LG000,3250TB0400S2LSR00,3250TB0400S2LS000,3250TB0400S2L9R00,3250TB0400S2L9000,
3250TB0600S01ER00,3250TB0600S01E000,3250TB0600S018R00,3250TB0600S018000,3250TB0600S01GR00,
3250TB0600S01G000,3250TB0600S01SR00,3250TB0600S01S000,3250TB0600S019R00,3250TB0600S019000
3250TB0600S051ER00,3250TB0600S05E000,3250TB0600S058R00,3250TB0600S058000,3250TB0600S05GR00,
3250TB0600S05G000,3250TB0600S05SR00,3250TB0600S05S000,3250TB0600S059R00,3250TB0600S059000
3250TB0600S5P1ER00,3250TB0600S5PE000,3250TB0600S5P8R00,3250TB0600S5P8000,3250TB0600S5PGR00,
3250TB0600S5PG000,3250TB0600S5PSR00,3250TB0600S5PS000,3250TB0600S5P9R00,3250TB0600S5P9000,
3250TB0600S2L1ER00,3250TB0600S2LE000,3250TB0600S2L8R00,3250TB0600S2L8000,3250TB0600S2LGR00,
3250TB0600S2LG000,3250TB0600S2LSR00,3250TB0600S2LS000,3250TB0600S2L9R00,3250TB0600S2L9000,
